ADAS Radar Three-in-one Adaptive Cruise System Calibration(Conical Radar Target)

The radar three-in-one calibration tool is a tool for radar system calibration developed by SmartSafe, including ACC radar reflector, conical radar target, Doppler simulator, three-in-one main frame and accessories. It can calibrate adaptive Cruise control system, blind spot monitoring system, lane change assist system, front corner radar system, etc.

Calibration equipment

LAC05-03

Three-in-one main frame

ST D01 tablet

Calibration system

ACC adaptive cruise control system

Calibrated car model

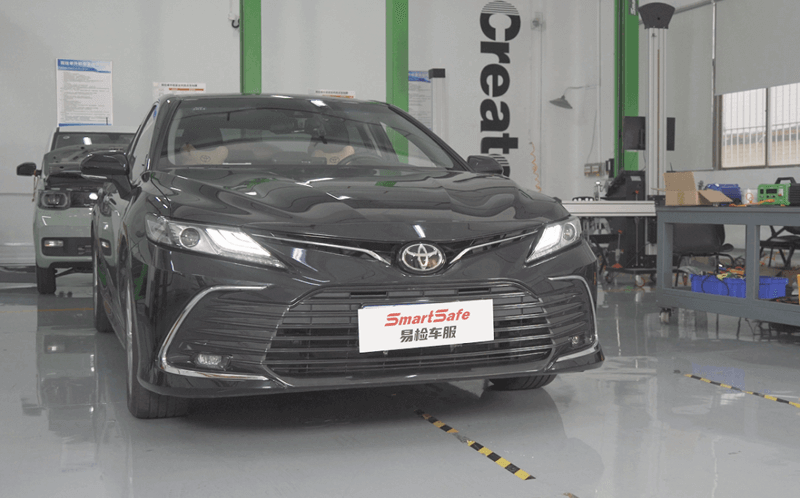

Toyota Camry

Operation Tutorial

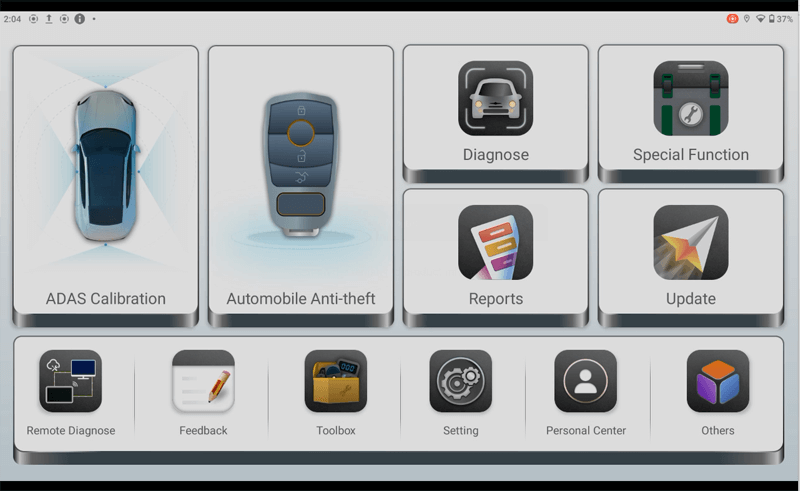

1. Turn on the auto ignition switch, and connect the OBD diagnostic connector. Select [ADAS Calibration] on the D01 main interface to automatically recognize the VIN code.

2. Select [2021.03-].

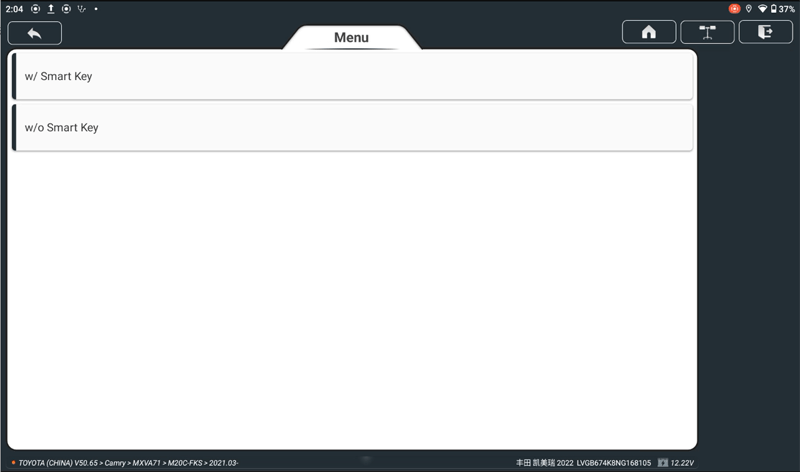

3. Select [w/Smart Key].

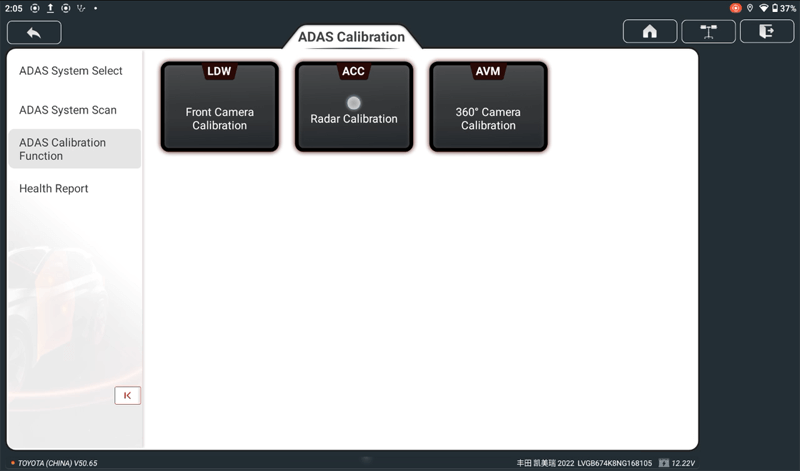

4. Enter [ADAS Calibration Function], and select [Radar Calibration].

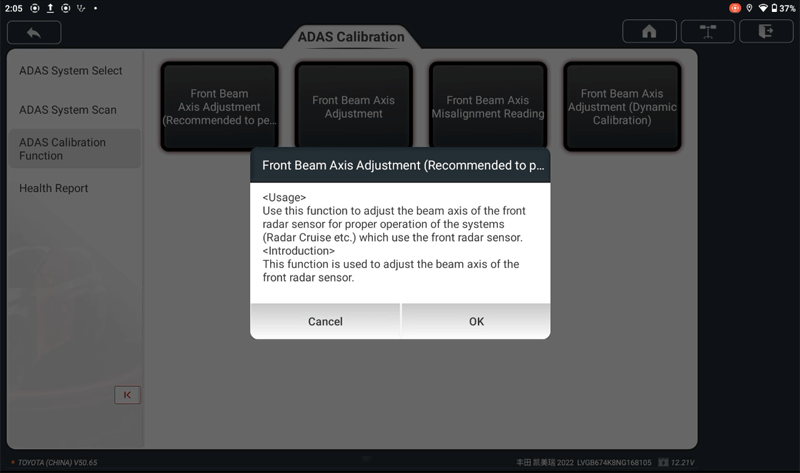

5. Select [Front Beam Axis Adjustment(Recommended to p...)], and click [OK].

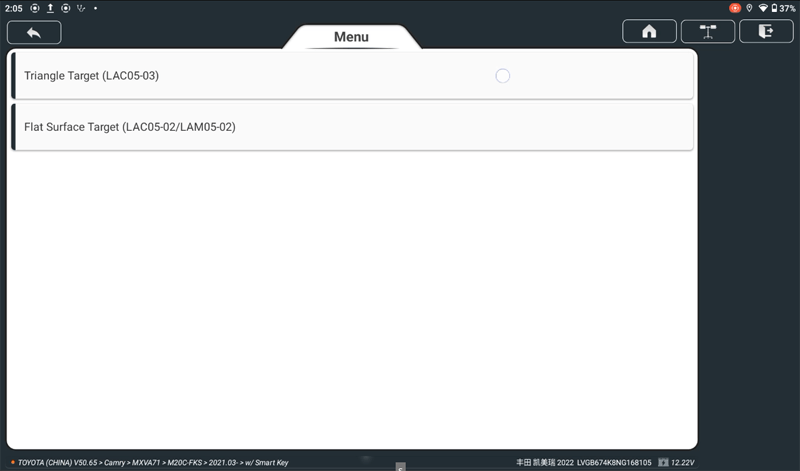

6. Select [Triangle Target (LAC05-03)].

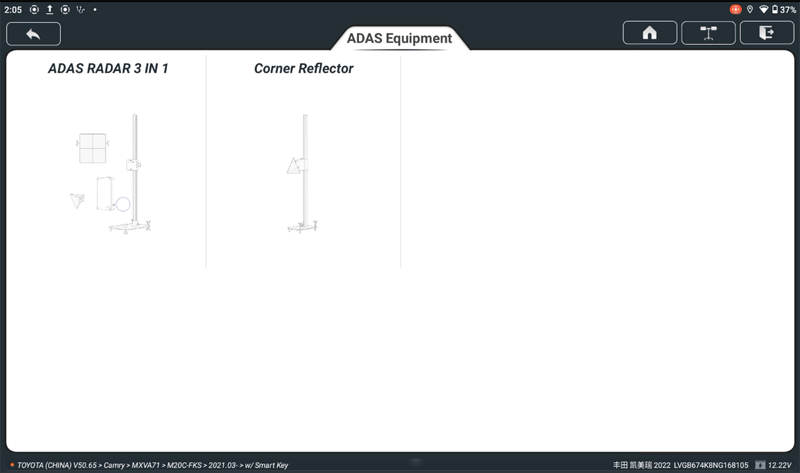

7. Select [ADAS RADAR 3 IN 1].

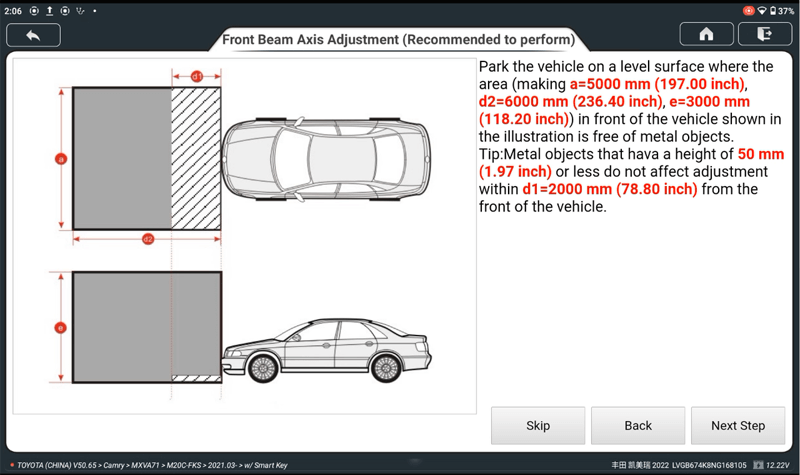

8. Follow the prompt information to operate, and click [Next Step].

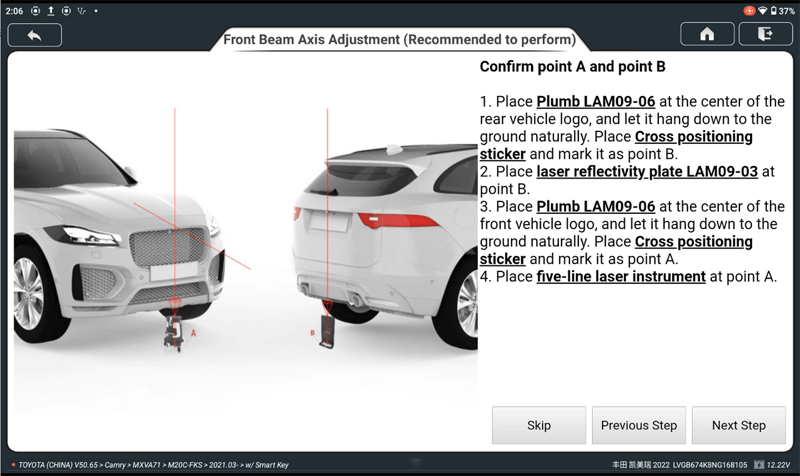

9. Determine Point A And Point B

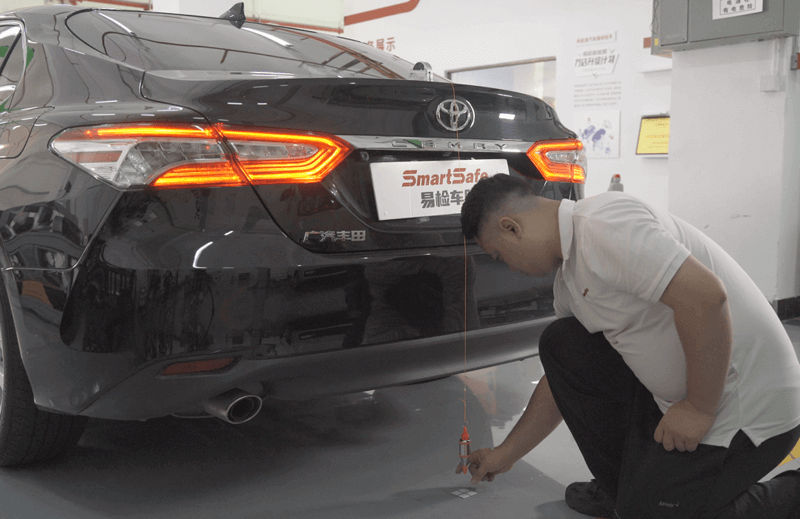

① Place Plumb LAM09-06 at the center of the rear vehicle logo, and let it hang down to the ground naturally. Place Cross positioning sticker and mark it as point B.

② Place laser reflectivity plate LAM09-03 at point B.

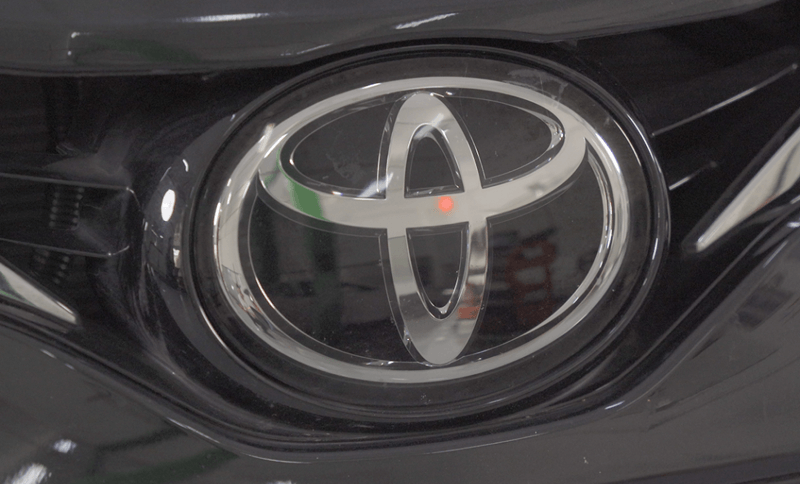

③ Place Plumb LAM09-06 at the center of the front vehicle logo, and let it hang down to the ground naturally. Place Cross positioning sticker and mark it as point A.

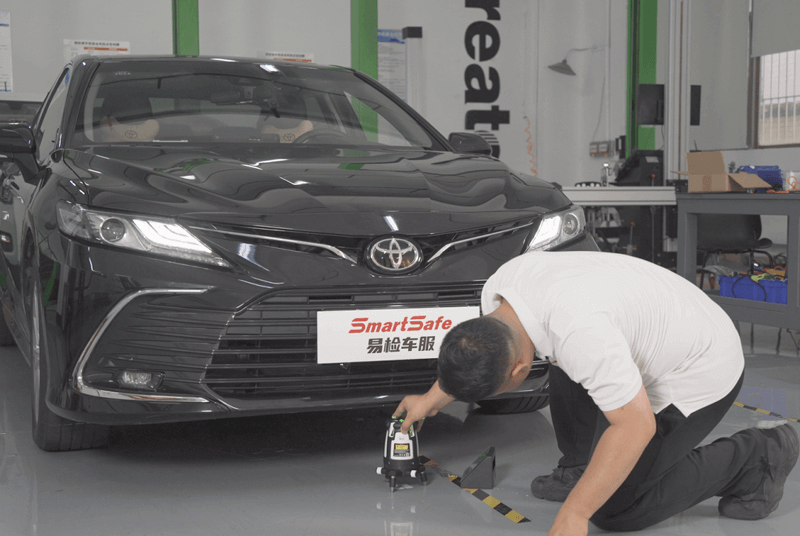

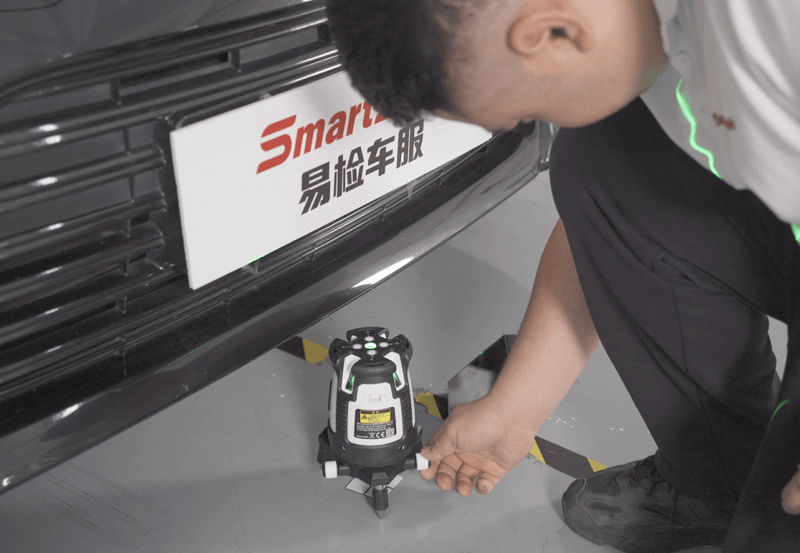

④ Place five-line laser instrument at point A.
⑤ Click [Next Step].

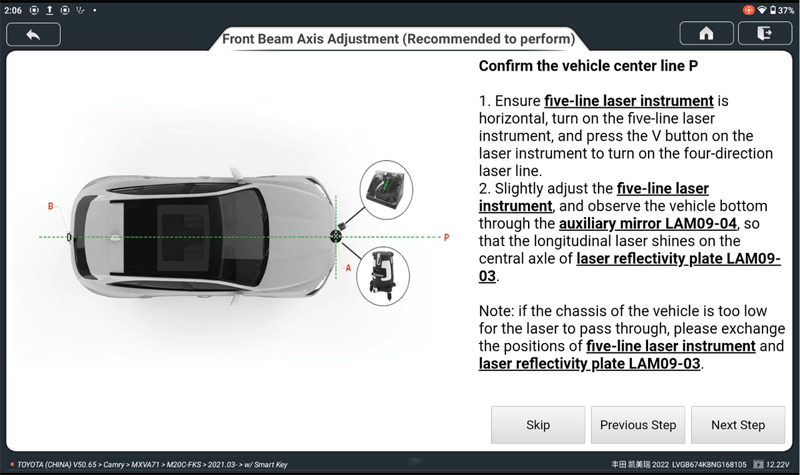

10. Determine The Vehicle Center Line P

① Ensure five-line laser instrument is horizontal, turn on the five-line laser instrument, and press the Vbutton on the laser instrument to turn on the four-direction laser line.
②  Slightly adjust the five-line laser instrument, and observe the vehicle bottom through the auxiliary_mirror LAM09-04, so that the longitudinal laser shines on the central axle of laser reflectivity plate LAM09-03.
③ Click [Next Step].

11. Determine Point C

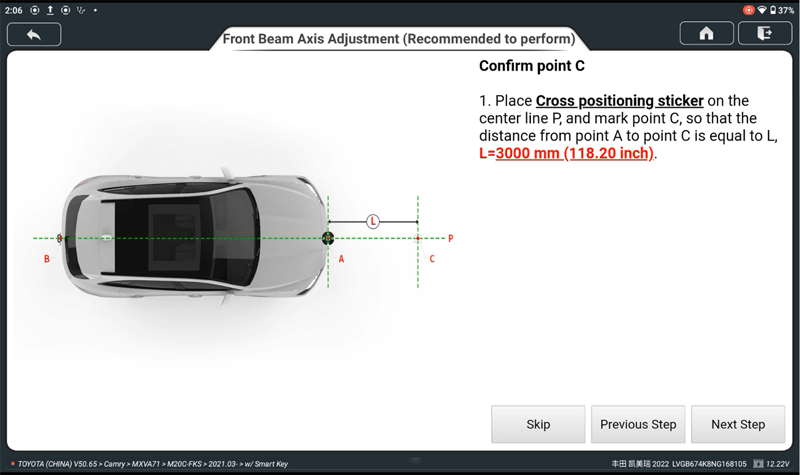

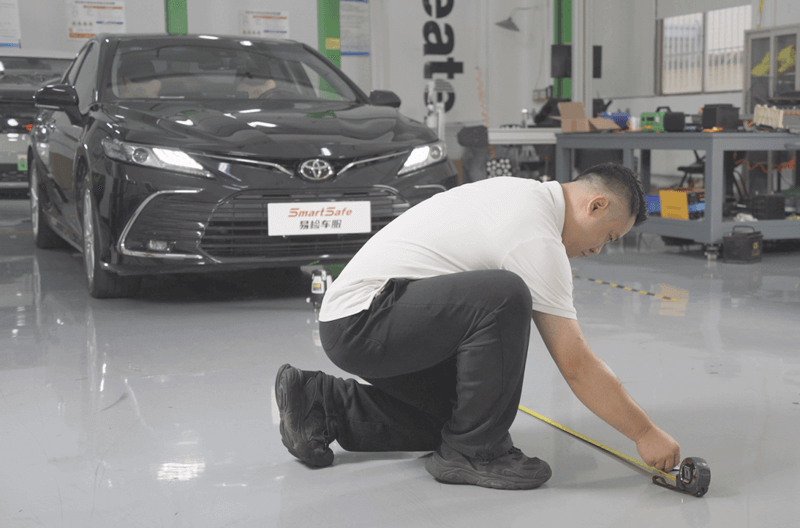

① Place Cross positioning sticker on the center line P and mark point c, so that the distance from point A to point C is equal to L, L=3000 mm (118.20 inch).

② Click [Next Step].

12. Place Calibration Target ①

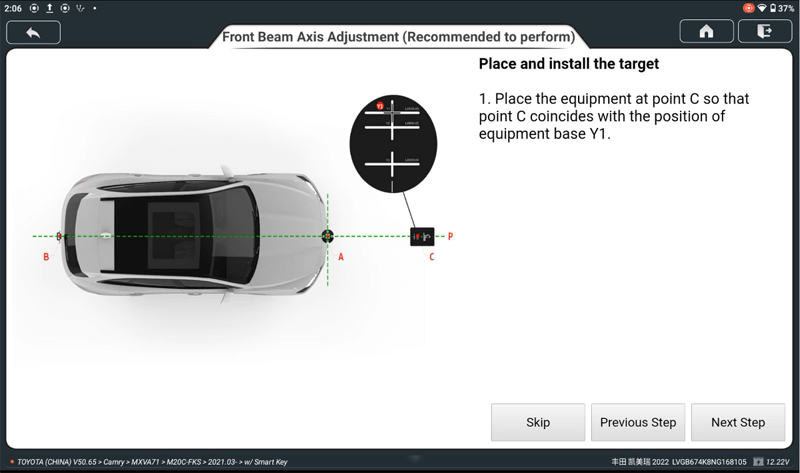

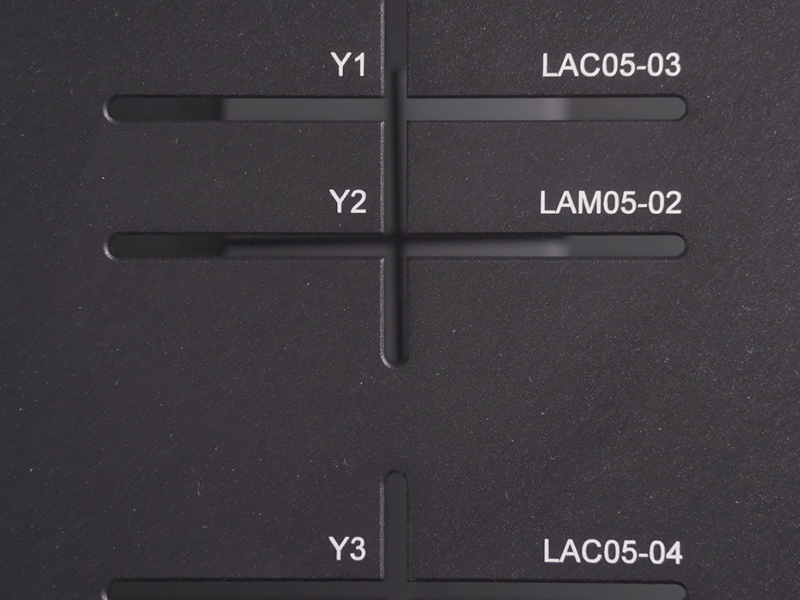

① Place the equipment at point C so that point C coincides with the position of equipment base Y1.

② Click [Next Step].

13. Place Calibration Target ②

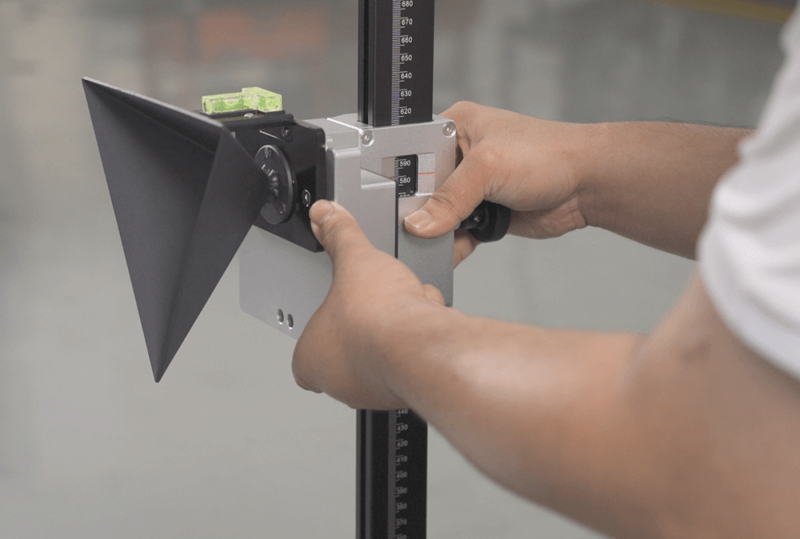

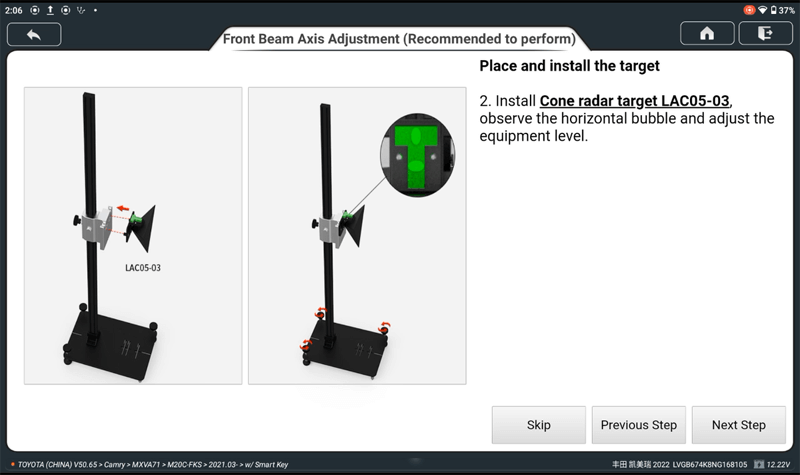

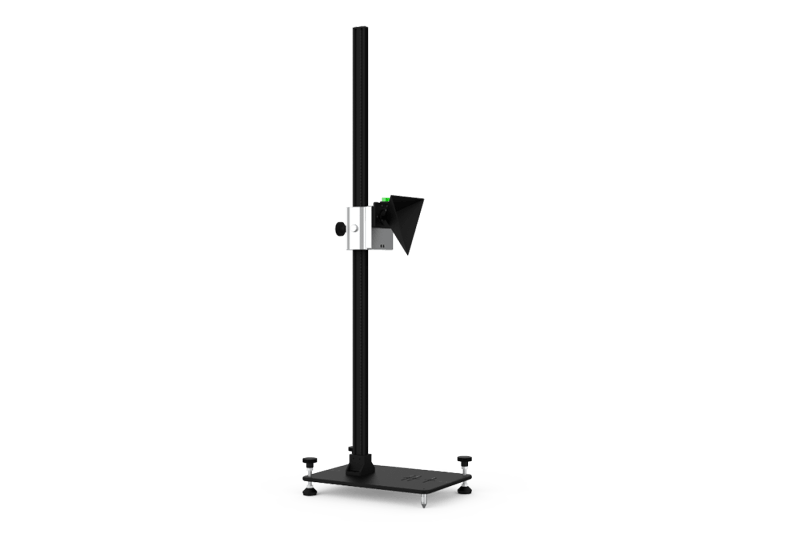

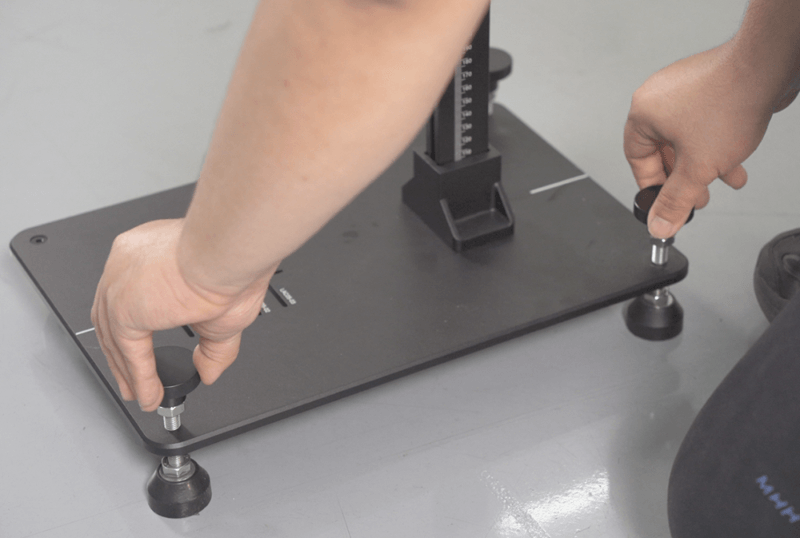

① Install Cone radar target LAC05-03 observe the horizontal bubble and adjust the equipment level.

② Click [Next Step].

14. Place Calibration Target ③

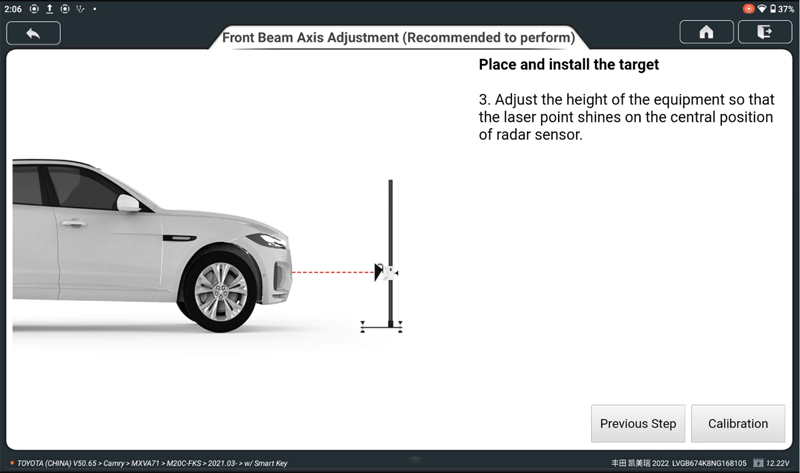

① Adjust the height of the equipment so that the laser point shines on the central position of radar sensor.

② Click [Calibration].

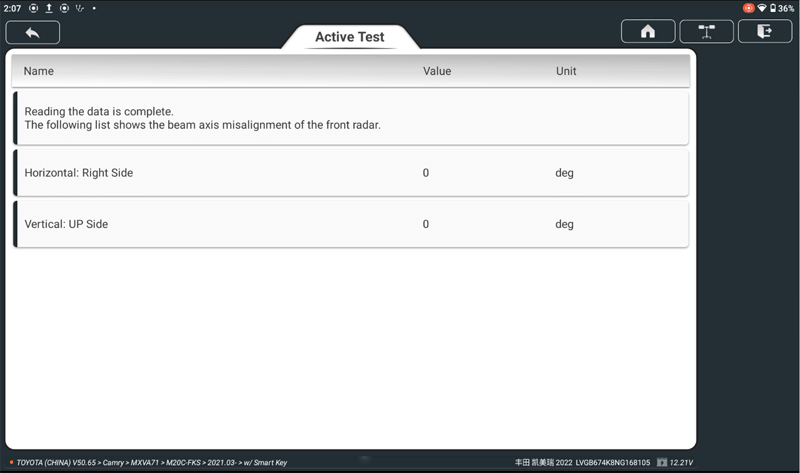

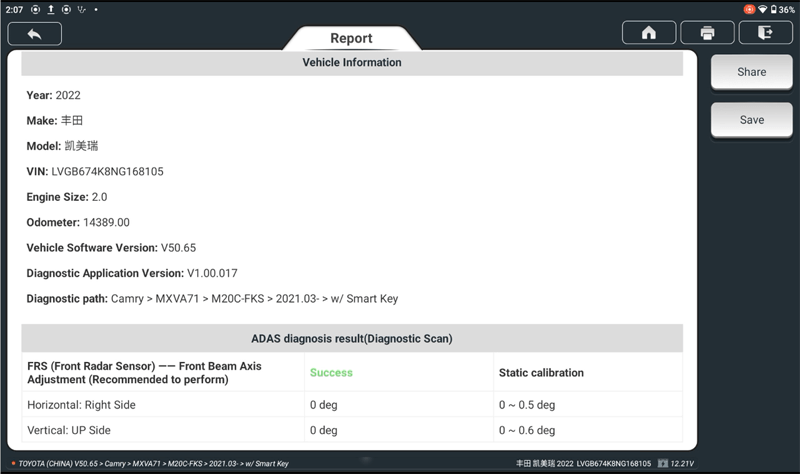

15. Wait for the calibration to complete and save the ADAS report.
