Mercedes-Benz ML300 Night Vision Assist System Calibration

Functional description

When calibration is required:

① Replace the front windshield.

② Lost calibrated or uncalibrated DTC appears.

③ Structural Changes/Chassis Adjustments

④ Replace the night vision camera.

Precautions

① Put the vehicle stationary on level ground, the tire pressure is normal, and the wheel alignment is normal.

② The steering angle of the steering wheel is 0.

③ Please place the target correctly according to the steps prompted by the device.

④ The front of the vehicle is well-lit.

Operation steps

1. Turn on the ignition switch of the car, connect the diagnostic equipment, select the Mercedes-Benz model software, and enter the following menu interface.

2. Select "ADAS Calibration" function.

3. Confirm that the ignition switch is turned on, click "OK" to enter the following interface.

4. Select [NSA-Night Vision Assist System] to enter the following function menu interface.

5. Select  [Special Function].

6. Select [Teach-in Processes-calibration].

7. Select [OK].

8. Select [YES].

9. Select [ADAS Mobile].

10. Select [Next Page].

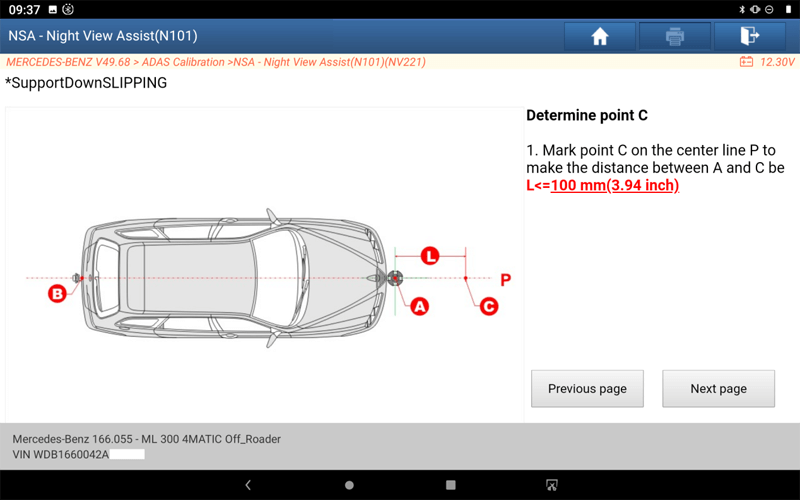

11. Select [Next Page].

12. Select [Next Page].

13. Select [Next Page].

14. Select [Next Page].

15. Select [Next Page].

16. Select [Next Page], start calibrating, and display the calibration results.

17. Calibration completed successfully.
