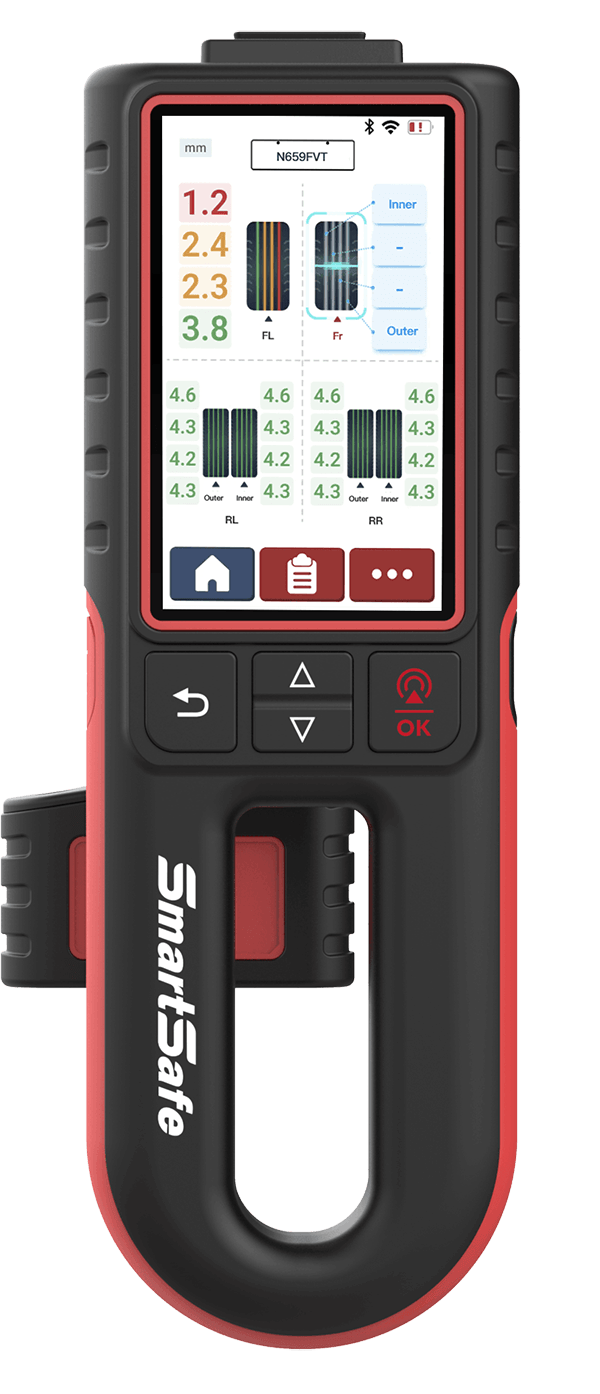

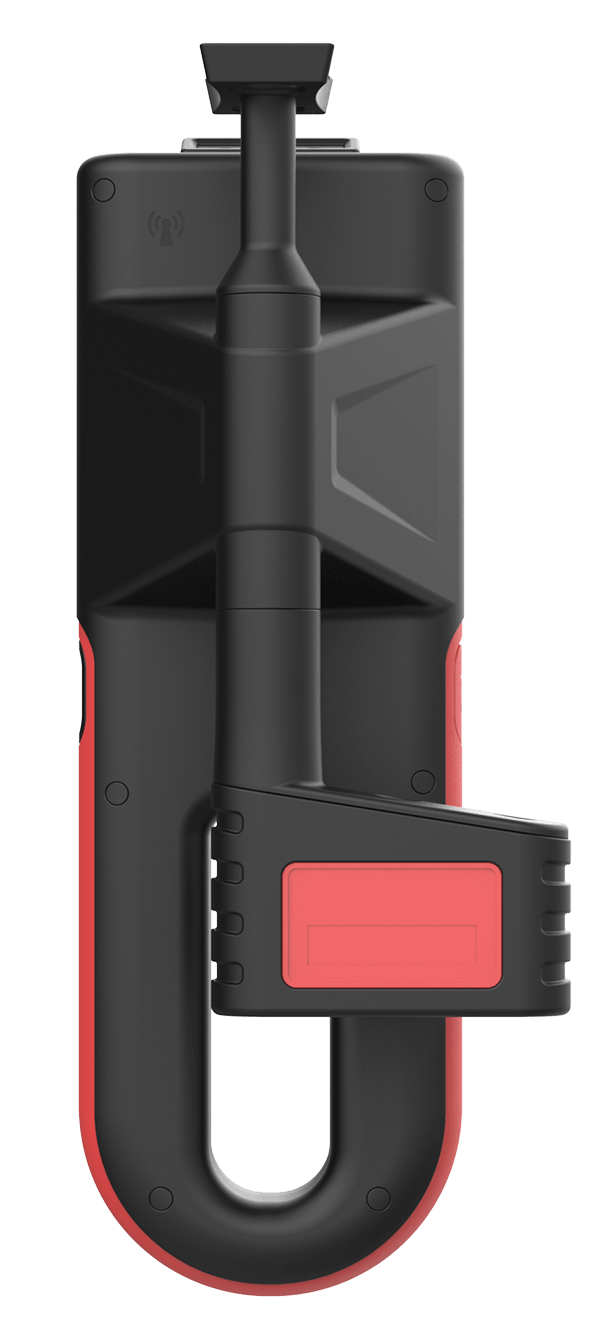

TIT513
Tire Tread & Pressure Integrated Tool

The TIT513 is the first handheld 2-in-1 tread depth and TPMS tester, combining tire wear analysis with full TPMS functions—activation, programming, relearning, and diagnostics.

TIT513
Features Functions Parameters Documents

Features

  • Industry-First 2-in-1
    Industry-First 2-in-1
    Industry FirstHandheld 2-in-1 Tread Depth & TPMS Inspection Device.
  • Smart Entry Inspection
    Smart Entry Inspection
    Entry inspection, license plate recognition
  • 0.1 mm Tread Precision
    0.1 mm Tread Precision
    tread depthInspection accuracy up to 0.1mm
  • Complete TPMS Service
    Complete TPMS Service
    Supports TPMS activation, programming, relearning, Diagnostics
  • Broad Sensor Compatibility
    Broad Sensor Compatibility
    Supports all 315 & 433 MHzTPMSsensors, covering mainstream vehicle models
  • Shareable Inspection Reports
    Shareable Inspection Reports
    Generates comprehensive tread depth & TPMS inspection reports, supports sharing

Functions

  • Tread DepthInspection

    Supports tire groove depth measurement.

  • TPMS System

    Supports TPMS activation, programming and learning.

  • Fault Diagnostic

    Quickly reads vehicle TPMS system fault codes DTC, providing detailed fault causes and status.

  • Test Report

    Professional reports available: data comparison & shareable.

Parameters

Tread Measurement Accuracy 0.1mm°
Max. Tread Measurement Width 180mm
TPMS Communication  315&433MHZ
Measuring Camera 2MP
Photo Camera 8MP
Operating System Android10
CPU MTK8365
Memory 2GB
Internal Storage 32GB
Display 3.97-inch LCD touch screen, 480×800 resolution
Communication Wi-Fi (2.4GHz/5GHz dual-band), Bluetooth
Battery 7.4V/3000mAh



Documents

Product Manual
