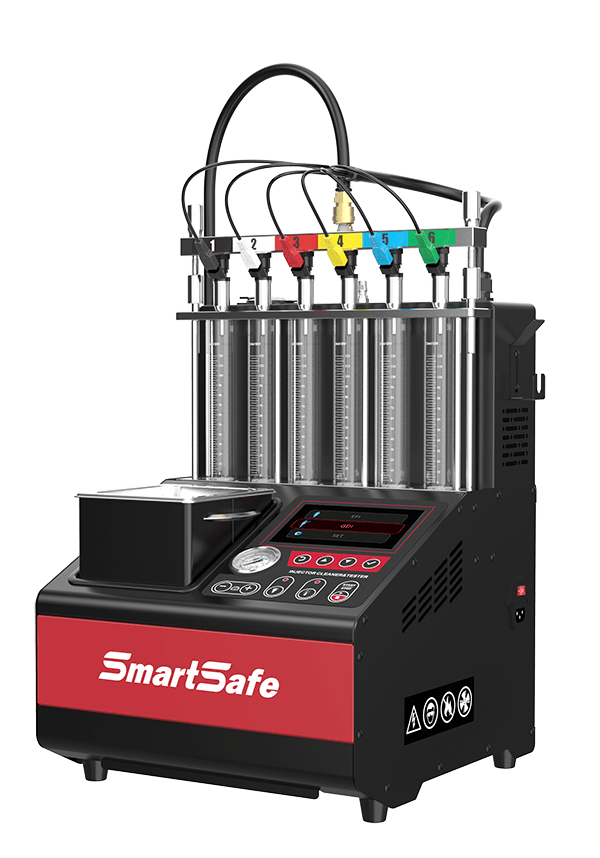

Simultaneously measures the internal resistance of up to six fuel injectors, allowing circuit condition to be assessed using resistance values and injector-to-injector comparisons.
Cleans multiple fuel injectors simultaneously using ultrasonic energy to remove deposits.
Checks the delivery uniformity of each injector while the backlit viewing area provides a clear view of the spray pattern and atomization.
Checks injector sealing performance and detects leakage under system pressure.
Measures the volume delivered by each injector during a 20-second continuous injection cycle.
Tests injector performance under multiple simulated engine operating conditions using preset parameters.
Supports injector cleaning on the vehicle using a range of adapters for different vehicle applications, without removing the injectors.
| Voltage input | AC110V / AC220V 50Hz/60Hz |
| Machine power | 500W |
| Ultrasonic cleaning machine power | 100W |
| Fuel tank capacity | 2.5L |
| Working pressure | 0.1~9bar |
| Pulse width | 0.1~25ms (step length: 0.1ms) |
| Simulation speed range | 100~9900rpm |
| External Magnetic Field Strength | <400A/m |
| Resistance test range | 0~250KΩ |
| Ambient temperature | 0°C~45°C |
| Relative humidity |
<85% RH |
